Field of application

Main rolling mill drive units
Heavy machinery construction plants

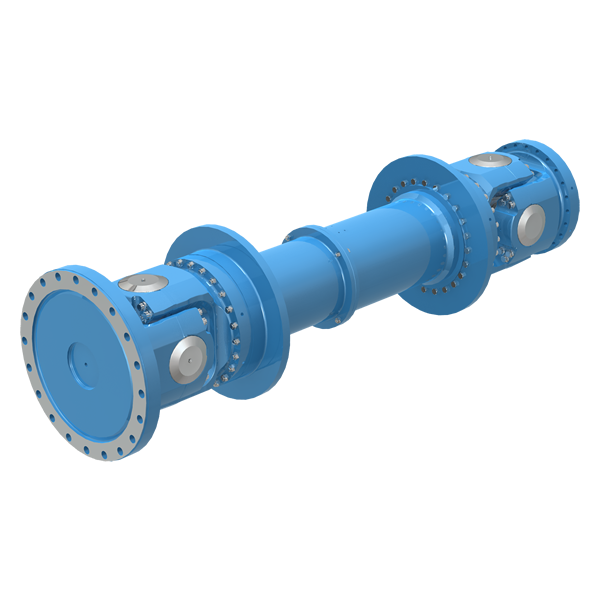

Main features

Three operating angle versions for maximum torque or maximum bearing life capacity
Split bearing eyes with toothed bearing cap
Standard Hirth-serrated flange
Operating angle up to 15°Operating angle 7° up to 15°
Each driveshaft size has a specific hole pattern (see table). Other hole patterns available on request.

General details

Torque Range TCSFrom 1880 to 15000kNm
Flange diameter From 600mm to 1200mm
